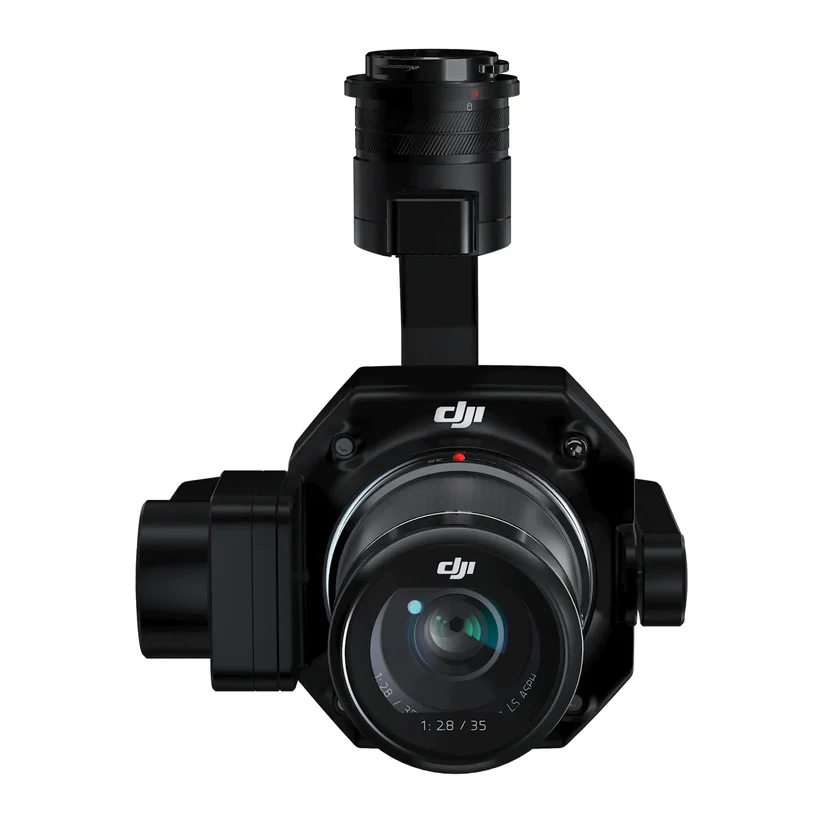

DJI Zenmuse P1 with Care Enterprise Basic

General

• Product Name: Zenmuse P1
• Dimensions: 198×166×129 mm
• Weight: Approx. 787 g
• Power: 13 W
• IP Rating: IP4X
• Supported Aircraft: Matrice 300 RTK
• Operating Temperature Range: -20° to 50° C (-4° to 122° F)
• Storage Temperature Range: -20° to 60° C (-4° to 140° F)
• Absolute Accuracy: Horizontal: 3 cm, Vertical: 5 cm *(Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.)

Camera

• Sensor: Sensor size (Still): 35.9×24 mm (Full frame) ; Sensor size (Max video recording area): 34×19 mm ; Effective Pixels: 45MP ; Pixel size: 4.4 μm
• Supported Lenses: DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84° ; DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5° ; DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°
• Supported SD Cards: SD: UHS-1 rating or above; Max capacity: 128 GB
• Storage Files: Photo / GNSS Raw Observation Data/ Image Log File
• Photo Size: 3:2 (8192×5460)
• Operation Modes: Capture, Record, Playback
• Minimum photo interval: 0.7 s
• Shutter Speed: Mechanical Shutter Speed: 1/2000-1/8 s ; Electronic Shutter Speed: 1/8000-8 s
• Aperture Range: f/2.8-f/16
• ISO Range: Photo: 100-25600 ; Video: 100-3200

Video

• Video Format: MP4
• Video Resolution: 16:9 (3840×2160)
• Frame Rate: 60fps

Gimbal

• Stabilized System: 3-axis (tilt, roll, pan)
• Angular Vibration Range: 0.01°
• Mount: Detachable DJI SKYPORT
• Mechanical Range: Tilt: -125° to +40°; Roll: -55° to +55°; Pan: ±320°
